19 December 2018
Many long-term diseases of the liver lead to scarring, or fibrosis, that restricts the organ’s functions. Evidence that fibrosis can regress has spurred the search for therapies that suppress scar-tissue formation to restore liver health.
Link to pdf: https://www.nature.com/magazine-assets/d41586-018-07760-9/d41586-018-07760-9.pdf
Unhealthy progression
Scar-tissue formation is the body’s basic response to injury. Tissue damage triggers the deposition and cross-linking of fibres composed of the protein collagen, which helps to preserve the structural integrity of the wounded area. When affected by chronic disease, the liver continuously attempts to heal damaged tissue. A build-up of scar tissue can then become a problem.
1. The healthy liver filters blood from the digestive system, helps to maintain the body’s nutrient balance, breaks down toxic substances and drugs, and makes numerous essential proteins and hormones.
2. During fibrosis of the liver, a collagen-rich extracellular matrix — a network of material that fills the space between cells — replaces healthy tissue, leading to the formation of scar tissue.
3. Fibrosis can progress to cirrhosis, in which scar tissue increasingly disrupts blood flow in the liver and compromises the organ’s functions. This can lead to liver failure and even death.
4. People with cirrhosis have an elevated risk of developing liver cancer1 — the leading cause of death in those with asymptomatic cirrhosis. Individuals with the viral liver infection hepatitis C, which leads to cirrhosis, have the highest risk: up to 30% of infected people in Japan will develop cancer in the five years that follow diagnosis1. Treating the underlying disease reduces a person’s risk, but it remains elevated2.
Building blocks
Oxygenated blood enters the liver through the hepatic artery, and deoxygenated but nutrient-rich blood enters through the hepatic portal vein from the intestines. The incoming blood mixes in structures known as sinusoids, which are lined with endothelial cells and hepatocytes — cells that carry out most of the liver’s functions. Blood then leaves the liver by the central vein.
Road to fibrosis
Fibrosis is mediated by myofibroblasts. These contractile cells secrete various proteins into their surroundings, contributing to the extracellular matrix. In the liver, most myofibroblasts are derived from hepatic stellate cells (HSCs). Fibrosis is a common response to liver injury. The three main causes of cirrhosis — and therefore damage to the liver — are viral hepatitis, alcoholic liver disease and, increasingly, non-alcoholic fatty liver disease (see go.nature.com/2ilk1zj). Less common conditions, such as obstruction of the bile duct and autoimmune and genetic disorders, also contribute.
1. HSCs reside in the space of Disse, which lies between the hepatocytes and endothelial cells of the sinusoid. Inactive HSCs store vitamin A and help to maintain normal liver function.
2. When the liver is injured, HSCs are activated by signalling molecules released by several cell types. These include damaged hepatocytes, the liver’s resident immune cells (a type of macrophage called Kupffer cells), infiltrating immune cells and other activated HSCs. HSCs then transform into myofibroblasts.
3. Myofibroblasts contract and exert tension on damaged tissue. They secrete collagen fibres and proteins such as elastin, which start to form scar tissue.
4. Collagen fibres accumulate and become cross-linked, stiffening the scar tissue.
TIMELINE: Evidence builds
Liver fibrosis and cirrhosis were long thought to be irreversible. But over several decades, researchers have shown that fibrosis can be undone. The liver is now known to make and break down scar tissue continuously, which raises the possibility that drugs could be used to tip the balance in favour of healing.
1974
Key enzymes Enzymes that degrade collagen in the extracellular matrix are found in rat models of liver fibrosis3, which suggests that the body is able to remove scar tissue.
1990s
Clinical hints Numerous small clinical studies hint that fibrosis can improve after treatment for liver diseases. But the general view remains that fibrosis is irreversible.
1998
Rat reversal A detailed study reveals that fibrosis can be reversed in rats through the increased activity of collagen- digesting enzymes and the death of myofibroblasts4.
2002
Antivirals A large study of people with hepatitis C who have been treated with antiviral drugs shows a reversal of fibrosis in half of those with cirrhosis5.
2005
Stop and start Researchers uncover two subpopulations of macrophage in rodents: one that encourages fibrosis to form, and another that helps to resolve it6.
2013
Target hit In a large trial, 87% of people treated for hepatitis B with an antiviral drug see an improvement in fibrosis after five years7.
Quest for treatments
The body’s innate ability to undo liver fibrosis means that tackling the underlying cause — with antiviral drugs or by reducing alcohol intake, for instance — can help to resolve scarring. But there is also a need for drugs that directly target the fibrotic process to halt or even prevent scarring, and thereby lessen liver damage.
Shoot the messenger
Drugs that prevent fibrosis-promoting signalling molecules, such as cytokines, from reaching HSCs are being investigated. Cenicriviroc, a small molecule that blocks two types of cytokine receptor, is now in phase III clinical trials. Small molecules that target other receptors, and antibodies that bind to secreted messengers, are also being explored.

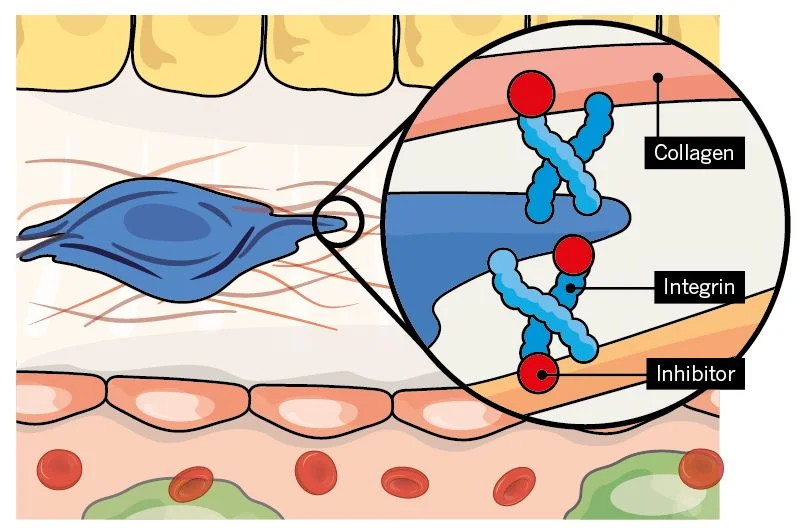

Interfere with integrins
Integrins are cell-surface receptors that are activated by cell–extracellular matrix or cell–cell interactions. They can have multiple profibrotic effects. Integrins αvβ1 and αvβ6 have emerged as especially exciting targets for the treatment of liver fibrosis, and numerous small molecules and antibodies that inhibit integrins are approaching phase I trials.

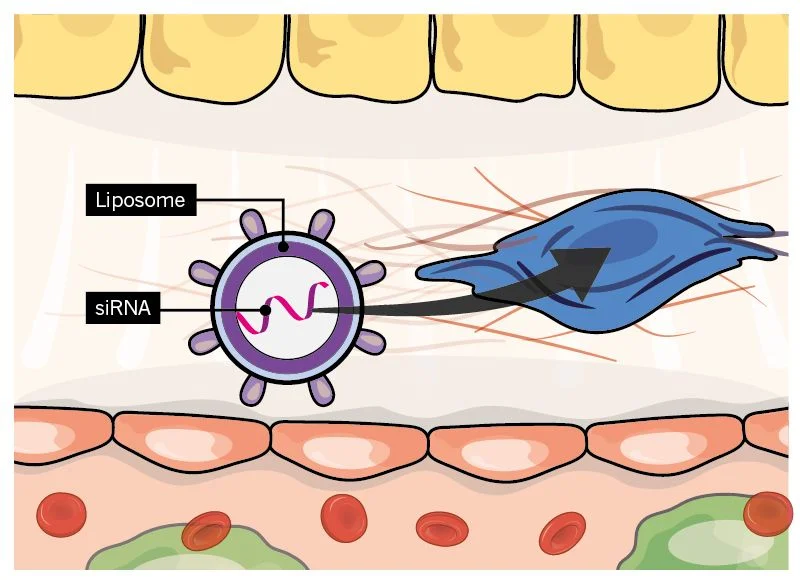

Destroy the matrix
Small interfering RNAs (siRNAs) that halt collagen synthesis by binding to collagen- encoding messenger RNA are being pursued. An siRNA targeted to HSCs that suppresses a protein needed for collagen to mature has completed phase I trials. Drugs that block collagen cross-linking enzymes or inhibitors of enzymes that digest collagen might also aid scar breakdown.
Remove myofibroblasts
Drugs that block intracellular signalling pathways that maintain HSC activation, or mimic signals that promote the death of myofibroblasts or their reversion to HSCs, are being sought to speed the resolution of fibrosis.
Bring on fresh players
Clinical trials that introduce stem cells into the liver have failed to induce therapeutic effects. But in the mouse liver, macrophages have been shown to produce strong antifibrotic effects8 — phase I trials are under way.
Challenges to overcome
Liver fibrosis tends to progress over decades. Clinical trials can therefore take years to complete and often require many participants. But researchers are searching for biomarkers in blood that indicate changes in the rates of scar formation and breakdown. These molecules could reveal within a matter of weeks whether potential drugs are working.
Nature 564, S74-S75 (2018)
References
Fattovich, G., Stroffolini, T., Zagni, I. & Donato, F. Gastroenterology 127 (suppl.), S35–S50 (2004).
Kanwal, F. et al. Gastroenterology 153, 996–1005 (2017).
Okazaki, I. & Maruyama, K. Nature 252, 49–50 (1974).
Iredale, J. P. et al. J. Clin. Invest. 102, 538–549 (1998).
Poynard, T. et al. Gastroenterology 122, 1303–1313 (2002).
Duffield, J. S. et al. J. Clin. Invest. 115, 56–65 (2005).
Marcellin, P. et al. Lancet 381, 468–475 (2013)
Thomas, J. A., Ramachandran, P. & Forbes, S. J. J. Hepatol. 68, 1090–1091 (2018).
